50+ [REAL-TIME] OSPF Interview Questions and Answers

Last updated on 07th May 2024, Popular Course

Open Shortest Path First, or OSPF, is a routing protocol that is dynamic in large networks. Finding the best routes for data packets while taking into account factors like network topology and connectivity costs is its main job. Reducing congestion and increasing efficiency are two benefits of network segmentation. OSPF ensures scalability and resilience by using roles such as Autonomous System Boundary Router (ASBR) and Designated Router (DR) to adapt dynamically to network changes.

1. What is the OSPF Routing Protocol?

Ans:

OSPF is a dynamic routing protocol for exchanging information in an autonomous system. It calculates shortest paths using the Dijkstra algorithm. OSPF supports multiple areas, reducing routing table size. It ensures fast convergence, reliability, and VLSM support. Operating at Layer 3, OSPF facilitates router communication. OSPF employs a hierarchical design and designated routers for efficiency.

2. How can the router ID in the OSPF domain be changed?

Ans:

Router ID can be configured manually or automatically. The manual configuration uses the “router-id” command. Automatic selection is based on loopback or physical interface IPs. Changing the router ID requires restarting the OSPF process. Router ID uniquely identifies each router. It’s crucial for neighbour relationships and routing.

3. What are the important features of OSPF?

Ans:

• OSPF supports VLSM and CIDR.
• It employs a hierarchical design with areas.
• Authentication mechanisms secure routing information.
• Fast convergence adapts to topology changes.
• OSPF enables ECMP routing for path optimization.
• It’s adaptable to IPv4 and IPv6 networks.

4. What are the different network types of OSPF?

Ans:

• Point-to-point: Direct link between two routers.

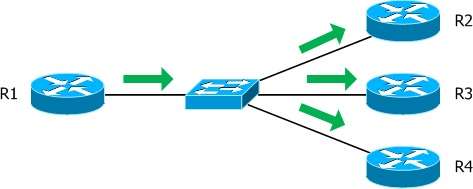

• Broadcast: Multi-access network with multiple routers.
• Non-broadcast multi-access: Like broadcast but without broadcast capabilities.
• Point-to-multipoint: Multiple point-to-point links from one router to multiple routers.
• Virtual link: Connects disjointed areas through a transit area.
• Each type has specific OSPF configuration requirements and behaviours.

5. How does OSPF work?

Ans:

OSPF routers exchange routing information using link-state advertisements (LSAs). Each router maintains a link-state database (LSDB) containing information about neighbouring routers and network topology. OSPF routers use the Dijkstra algorithm to calculate the shortest path to each destination based on the information in the LSDB. Routers flood LSAs to neighbouring routers, enabling them to build and maintain synchronized link-state databases.

6. Name the different types of LSA- Link State Advertisement used in OSPF.

Ans:

• Router LSA (Type 1)
• Network LSA (Type 2)
• Summary LSA (Type 3)
• ASBR Summary LSA (Type 4)
• External LSA (Type 5)
• NSSA External LSA (Type 7)

7. What are the different functions and workings of OSPF?

Ans:

• OSPF performs routing by exchanging routing information between routers.
• Link State Advertisements (LSAs) are used to build a complete network topology.
• OSPF calculates the shortest path to each destination using the SPF algorithm.
• It maintains neighbour relationships to exchange routing updates.
• OSPF supports areas to scale large networks and reduce routing overhead.
• The protocol ensures loop-free routing and network convergence.

8. Name the five packets used in OSPF.

Ans:

• Hello: Used for neighbour discovery and maintaining neighbour relationships.
• Database Description (DBD): Exchanges summary information about the link-state database.
• Link State Request (LSR): Requests specific link-state records from neighbouring routers.
• Link State Update (LSU): Advertises link-state information to neighbouring routers.
• Link State Acknowledgment (LSAck): Confirms receipt of LSU packets.

9. How can you change the reference bandwidth in OSPF?

Ans:

The OSPF reference bandwidth determines the metric of OSPF routes. To change it:

• Calculate the new reference bandwidth based on network requirements.
• Use the “auto-cost reference-bandwidth” command in OSPF configuration mode.
• Specify the desired reference bandwidth in megabits per second.
• OSPF will then use this value to calculate the cost of OSPF routes.

10. Differentiate between e1 and e2 in OSPF.

Ans:

	Aspect	E1 Routes	E2 Routes
Metric Type	Considers total cost (internal + external)	Considers only external cost
Path Selection	Prefers paths with lower total cost	Prefers paths with lower external cost
Propagation	Propagates both internal and external metrics	Propagates only external metrics
Route Calculation	Calculated based on sum of internal and external costs	Calculated based solely on external costs

11. What are the advantages of dividing the entire network into areas?

Ans:

• Improved scalability and reduced routing overhead.
• Enhanced network security and isolation.
• Simplified network management and troubleshooting.
• Facilitates hierarchical network design.
• Optimizes routing table sizes and reduces memory requirements.

12. What is OSPF Hello and Dead Interval?

Ans:

• Hello Interval: Time interval between OSPF Hello packets.
• Dead Interval: Time duration before declaring a neighbour router as unreachable.
• Hello, packets are used to establish and maintain neighbour relationships.
• Dead Interval helps detect and remove failed neighbour routers from OSPF topology.
• Configurable parameters to fine-tune OSPF neighbour detection.
• Critical for OSPF network stability and convergence.

13. What is DR and BDR in OSPF?

Ans:

DR: Designated Router. BDR: Backup Designated Router. DR and BDR are elected in multi-access OSPF networks. Reduce the number of adjacencies and flooding overhead. Ensures efficient OSPF network operation—backup in case of DR failure, minimizing network disruption.

 14. What is the DR and BDR election process?

Ans:

• DR and BDR election based on router priority.
• The highest-priority router becomes DR, and the second-highest becomes BDR.
• If priorities are equal, the router with the highest Router ID wins.
• Ensures efficient OSPF network operation in multi-access networks.
• Facilitates network stability and redundancy.

15. What are the key attributes of OSPF?

Ans:

• OSPF utilizes LSAs for topology exchange.
• Dijkstra algorithm calculates the shortest paths.
• Areas partition the network for scalability.
• Routers maintain synchronized LSDBs.
• DRs and BDRs optimize routing efficiency.
• Authentication ensures routing integrity.

16. What is Router ID?

Ans:

Unique identifier for OSPF router. Represented as a 32-bit IP address. Used for OSPF neighbour relationships and routing table calculations. Chosen based on configured ID or highest active IP address. Stable identifier even if IP addresses change. Critical for OSPF routing and topology maintenance.

17. What is the role of topology and routing tables in OSPF?

Ans:

Topology table: Stores complete network topology information. Routing table: Contains best paths to destinations. A topology table is used for the SPF algorithm to calculate routes. The routing table is populated with the best paths determined by SPF.OSPF maintains both tables to ensure accurate routing decisions, which are essential components for OSPF’s link-state routing protocol.

18. What is OSPF’s full LSA, LSU, and LSR form?

Ans:

• LSA: Link State Advertisement.
• LSU: Link State Update.
• LSR: Link State Request.
• LSA: Contains local routing information shared with OSPF neighbours.
• LSU: Sent to flood LSAs to neighbouring routers.
• LSR: Used to request missing or outdated LSAs from neighbours.

19. How can you change the neighbouring ships into adjacency?

Ans:

Ensure OSPF parameters (Hello and Dead Intervals) match. Verify OSPF network type compatibility. Correct any mismatched OSPF configurations. OSPF neighbour relationships are established upon successful adjacency. Verify adjacency status using the OSPF neighbour command. Ensures OSPF routers can exchange routing information.

20. What are the most commonly known OSPF Neighbor States?

Ans:

• Down: No OSPF hello packets received.
• Init: The router received hello and is waiting to know its state.
• 2-Way: Bidirectional communication established.
• ExStart: Master-slave relationship negotiation.
• Exchange: Database description packets exchanged.
• Full: Complete adjacency was established, and routing information was exchanged.

21. Why is OSPF called a loop-free protocol?

Ans:

OSPF uses the SPF algorithm, ensuring loop-free paths. Each router calculates the shortest path tree, preventing routing loops in the network. OSPF maintains a consistent view of the network and updates routes based on the current topology. Hence, OSPF is known for loop-free routing.

22. What are the different OSPF Router types?

Ans:

• OSPF routers can be designated as internal, backbone, or ASBR.
• Internal routers reside within OSPF areas.
• Backbone routers connect multiple OSPF areas.
• ASBR routers connect OSPF to external networks.
• Each type serves a specific function in OSPF routing.
• Overall, OSPF routers maintain network connectivity.

23. What do you understand by Link State Retransmit Interval?

Ans:

Link State Retransmit Interval specifies LS retransmission frequency—the time between retransmitting LSAs. OSPF routers use this to ensure LSDB synchronization. A shorter interval means faster LSDB updates, aiding in maintaining OSPF network consistency.

24. What are the five OSPF packet types?

Ans:

• OSPF packets include Hello, DBD, LS Request, LS Update, and LS Acknowledgment.
• Hello, packets establish and maintain neighbour relationships.
• DBD packets exchange summary information about LSDB.
• LS Request and LS Update packets request and update LSAs.
• LS Acknowledgment confirms receipt of LSAs.
• These packets facilitate OSPF communication and routing.

25. What do you understand by the OSPF Router ID?

Ans:

• OSPF Router ID uniquely identifies each router.
• It’s a 32-bit identifier.
• OSPF uses the Router ID for various purposes.
• Including neighbour and route identification.
• It’s crucial for OSPF network operations.
• OSPF routers rely on Router ID for routing decisions.

26. What is the significance of the OSPF router ID?

Ans:

OSPF Router ID uniquely identifies routers. It’s essential for OSPF operation and routing. OSPF uses the Router ID to identify neighbours. Additionally, it aids in route selection and convergence. OSPF routers elect a Router ID among themselves. Thus, the OSPF router ID is crucial for network stability.

27. How does OSPF prevent routing loops?

Ans:

• OSPF uses the SPF algorithm.
• SPF calculates loop-free paths based on LSAs.
• Each router maintains a synchronized LSDB.
• Routers exchange link-state information periodically.
• OSPF updates routes based on the SPF calculation.
• Hence, OSPF ensures loop-free routing in networks.

28. Explain the OSPF SPF (Shortest Path First) algorithm.

Ans:

OSPF SPF algorithm calculates shortest paths. It uses Dijkstra’s algorithm. OSPF routers construct a shortest path tree. Each router determines its optimal route. SPF ensures efficient routing in OSPF networks. Hence, the OSPF SPF algorithm facilitates optimal path selection.

29. What are the different OSPF packet types and their purposes?

Ans:

• OSPF packets include Hello, DBD, LS Request, LS Update, and LS Acknowledgment.
• Hello, packets establish and maintain neighbour relationships.
• DBD packets exchange summary information about LSDB.
• LS Request and LS Update packets request and update LSAs.
• LS Acknowledgment confirms receipt of LSAs.
• These packets facilitate OSPF communication and routing.

30. How does OSPF handle network convergence?

Ans:

• OSPF achieves network convergence through LSAs.
• Routers exchange LSAs to synchronize LSDBs.
• SPF algorithm calculates the shortest paths.
• Routers update routing tables based on LSDB.
• Thus, OSPF ensures rapid and efficient network convergence.

31. Can OSPF run over non-IP networks?

Ans:

Yes, OSPF can run over non-IP networks. It uses a protocol extension called OSPF Not-So-Stubby Areas (NSSA) to support non-IP networks, allowing OSPF to function in networks where IP is not the primary protocol. OSPF for IPv6 also supports running over non-IP networks. However, configurations may vary depending on the specific non-IP protocol in use. Overall, OSPF’s flexibility enables it to operate in diverse network environments.

32. How does OSPF handle network failures?

Ans:

OSPF employs a fast convergence mechanism to handle network failures. When a link or router fails, OSPF routers quickly detect the failure through Hello packets and adjacency monitoring. OSPF then recalculates routes using its SPF algorithm. This rapid convergence minimizes the impact of network failures on overall network operation. OSPF also supports mechanisms like graceful restart to enhance network resilience further.

33. Explain the concept of OSPF areas and their benefits.

Ans:

• OSPF divides networks into areas to improve scalability and reduce routing overhead.
• Each area has its topology database and is connected to the backbone area (Area 0).
• Area boundaries are defined by routers known as Area Border Routers (ABRs).
• OSPF areas reduce the size of the LSDB and limit the propagation of routing information.
• This hierarchical structure enhances network efficiency and reduces routing table size.
• Overall, OSPF areas provide a scalable and manageable way to organize large networks.

34. What is the OSPF LSDB (Link State Database)?

Ans:

The OSPF LSDB database stores information about the network’s topology. It contains all the Link State Advertisements (LSAs) received from OSPF routers in the same area. LSAs describe the routers, links, and network segments in the OSPF domain. OSPF routers use the LSDB to calculate the shortest path to each destination. LSDBs are synchronized between OSPF routers to maintain a consistent network view.

35. How does OSPF authenticate routing updates?

Ans:

• OSPF supports authentication to verify the integrity and authenticity of routing updates.
• It uses a simple password-based authentication mechanism.
• Routers exchange authentication information through OSPF Hello packets.
• Only routers with matching authentication passwords can exchange routing information.
• This prevents unauthorized routers from injecting false routing updates into the OSPF domain.
• Overall, OSPF authentication enhances network security and integrity.

36. Explain OSPF’s graceful restart and its importance.

Ans:

OSPF graceful restart allows a router to suspend routing updates temporarily during a restart. This prevents unnecessary network disruptions while the router restarts. Neighbouring routers maintain the router’s routes until the restart process is completed. OSPF’s graceful restart enhances network stability and minimizes downtime. It is particularly important in large-scale networks where disruptions can have significant impacts.

37. Can OSPF be configured for IPv6 networks?

Ans:

Yes, OSPF can be configured to support IPv6 networks.OSPFv3 (OSPF for IPv6) is specifically designed to support IPv6 routing. It uses the same basic principles as OSPFv2 but with modifications to support IPv6 addressing.OSPFv3 operates independently of OSPFv2 and requires a separate configuration. It supports IPv6 addressing and routing protocols, enabling seamless integration into IPv6 networks.

38. What is the OSPF LSA flooding mechanism?

Ans:

• OSPF LSA flooding is distributing link-state information throughout the OSPF domain.
• When a router generates or receives an LSA, it floods the LSA to all other routers in the area.
• Each router in the area forwards the LSA to its neighbours, ensuring that all routers have the same LSDB.
• LSA flooding uses reliable mechanisms to ensure that LSAs are propagated without loss.
• This flooding process helps OSPF routers maintain a synchronized view of the network topology.
• LSA flooding is essential for OSPF’s operation as a link-state routing protocol.

39. How does OSPF support VLSM (Variable Length Subnet Masking)?

Ans:

• OSPF supports VLSM by allowing routers to advertise subnets with different subnet masks.
• Each subnet is represented as a separate route in OSPF routing tables.
• OSPF routers calculate the shortest path to each subnet based on the subnet mask.
• This enables OSPF to route traffic to destinations with varying subnet sizes efficiently.
• VLSM support in OSPF improves network address space utilization and flexibility.
• Overall, OSPF’s support for VLSM enhances its suitability for modern network environments.

40. Explain OSPF virtual links and their use cases.

Ans:

OSPF virtual links are logical connections used to connect areas not directly connected to the backbone area. They allow traffic to traverse non-backbone areas to reach the backbone area. To establish connectivity, OSPF virtual links are configured between Area Border Routers (ABRs). Virtual links are typically used as temporary solutions to resolve network topology issues. They enable OSPF routing updates to flow through non-contiguous areas.

41. How does OSPF calculate the cost of a route?

Ans:

OSPF calculates route cost based on the interface bandwidth. It assigns higher costs to slower links. Cost inversely correlates with link bandwidth; higher bandwidth means lower cost. This helps OSPF select the most efficient paths. The formula is 10^8 / interface bandwidth in bps. OSPF then sums costs to determine the total path cost.

42. What is the role of OSPF-designated routers (DR) and backup-designated routers (BDR)?

Ans:

• DRs and BDRs manage communication in multi-access networks.
• They reduce OSPF overhead by consolidating updates.
• DR is elected through priority or highest router ID.
• BDR acts as a backup in case DR fails.
• SDRs/BDRs maintain adjacency with all routers, reducing update traffic.
• They ensure efficient OSPF network operation.

43. How does OSPF handle equal-cost multipath (ECMP) routing?

Ans:

• OSPF supports ECMP, distributing traffic across equal-cost paths.
• When multiple paths have the same cost, OSPF installs them all.
• ECMP enhances network efficiency and load balancing.
• It avoids congestion on specific links.
• OSPF routers maintain multiple equal-cost routes in routing tables.
• ECMP improves network resiliency and throughput.

44. Explain the OSPF LS age field and its significance.

Ans:

The OSPF LS age field denotes the time since the last update. It prevents stale route information. LSAs older than the LS age timer are considered expired. Expired LSAs are removed from the OSPF database. OSPF routers refresh LSAs periodically to update age. The age field ensures network topology accuracy.

45. Can OSPF be configured for authentication between routers

Ans:

Yes, OSPF supports authentication to secure routing updates. OSPF can use plain text or cryptographic authentication. Authentication ensures routers trust each other’s OSPF updates. Configurations include specifying authentication keys or passwords. Authentication prevents unauthorized routing updates. It enhances OSPF network security and integrity.

46. How does OSPF ensure network stability and reliability

Ans:

• OSPF ensures stability through rapid convergence and robustness mechanisms.
• It employs the SPF algorithm for quick route recalculations.
• OSPF routers exchange keepalive messages to detect failures promptly.
• Network stability is enhanced through areas that limit the scope of changes.
• OSPF also elects designated routers for efficient communication.

47. Explain OSPF stub areas and their configuration

Ans:

• OSPF stub areas reduce routing information, enhancing scalability.
• Stub areas block external LSAs, reducing OSPF overhead.
• Configuration involves designating an area as a stub.
• A default route is propagated into the stub area.
• Stub areas increase network efficiency and reduce resource usage.
• They simplify OSPF routing tables in designated areas.

48. How does OSPF support route summarization?

Ans:

OSPF supports route summarization to reduce routing table size. Summarization aggregates multiple routes into a single summary route, conserving router memory and CPU resources. OSPF routers advertise summarized routes instead of individual routes. Route summarization simplifies routing and enhances network efficiency.

49. What is the OSPF LS refresh time and its importance?

Ans:

OSPF LS refresh time determines how often LSAs are refreshed. It prevents LSAs from expiring and becoming stale. Refresh time intervals are configurable in OSPF. OSPF routers periodically re-advertise LSAs before they expire. LS refresh time ensures network topology accuracy and stability.

50. How does OSPF handle network scalability?

Ans:

OSPF enhances scalability through hierarchical design and areas. It divides networks into smaller manageable areas. Routers in different areas exchange summarized routing information. OSPF routers within an area have full topology knowledge. This reduces routing overhead and enhances scalability. OSPF supports networks of various sizes efficiently.

51. Explain OSPF adjacency formation and maintenance.

Ans:

• OSPF adjacency formation involves routers exchanging Hello packets and establishing neighbour relationships.
• Once neighbours are discovered, OSPF routers establish adjacencies by synchronizing their link-state databases.
• Adjacencies are maintained through periodic Hello packets and Link State Update (LSU) packets exchange.
• This process ensures that routers have consistent network topology information.
• Maintenance includes monitoring neighbour status and re-establishing adjacencies if necessary.
• Adjacency maintenance ensures network stability and convergence in OSPF.

52. What is the significance of OSPF network masks?

Ans:

• OSPF network masks determine the network and subnet boundaries in IP address assignments.
• Proper subnetting using network masks allows OSPF to route packets accurately.
• OSPF uses network masks to calculate route costs based on subnet size.
• Network masks ensure efficient use of IP address space and optimal routing decisions.
• In OSPF, network masks are essential for defining network boundaries and subnet addressing.
• More than incorrect network masks can lead to routing issues and suboptimal network performance.

53. How does OSPF handle network convergence in large-scale networks?

Ans:

OSPF uses a hierarchical network design with areas to manage large-scale networks efficiently. Each area maintains its link-state database, reducing the scope of routing updates. OSPF routers within an area can converge quickly due to reduced flooding and SPF calculations. Backbone areas (Area 0) facilitate inter-area routing, enhancing scalability and convergence. OSPF implements optimizations like route summarization to minimize convergence time.

54. Explain OSPF route redistribution and its implications.

Ans:

OSPF route redistribution allows the exchange of routes between OSPF and other routing domains. Redistribution can occur between OSPF and other routing protocols or between OSPF and static routes. Careful redistribution design is crucial to prevent routing loops and suboptimal routing. OSPF can filter redistributed routes based on policies to control route propagation.

55. What is the purpose of OSPF neighbour states?

Ans:

• OSPF neighbour states represent the different stages of neighbour relationships between routers.
• Neighbour states include Down, Attempt, Init, 2-Way, Exstart, Exchange, Loading, and Full.
• These states indicate the progress of adjacency formation and maintenance.
• OSPF routers transition through these states as they establish and maintain neighbour relationships.
• Understanding neighbour states helps troubleshoot OSPF adjacency issues and monitor network health.
• Neighbour-state transitions ensure proper OSPF operation and network connectivity.

56. How does OSPF handle network partitioning scenarios?

Ans:

• OSPF detects network partitioning through missed Hello packets and adjacency failures.
• Routers isolate partitioned segments, marking them as unreachable in their routing tables.
• OSPF routers continue to operate within reachable segments, maintaining intra-segment connectivity.
• When network partitioning resolves, OSPF routers re-establish adjacencies and converge the network.
• OSPF’s hierarchical design with areas helps contain the impact of network partitions.

57. Explain the OSPF SPF tree calculation process.

Ans:

OSPF SPF (Shortest Path First) algorithm calculates the shortest path tree from each router to all destinations. SPF tree calculation involves building a tree rooted at the calculating router with the shortest path costs to all network destinations. OSPF routers calculate SPF trees based on link-state information from the LSDB. The process involves selecting the shortest path to each destination by considering link costs.

58. How does OSPF handle inter-area routing?

Ans:

OSPF uses a hierarchical network design with backbone areas and non-backbone areas. Inter-area routing involves routers in non-backbone areas forwarding traffic through backbone areas. OSPF routers summarize routes between areas to reduce routing table size and optimize routing efficiency. Backbone routers exchange routing information with non-backbone routers to facilitate inter-area communication.

59. What is the OSPF backbone area and its significance?

Ans:

• The core area of the OSPF backbone (Area 0) connects all other OSPF areas.
• OSPF backbone routers play a critical role in interconnecting non-backbone areas.
• Backbone routers exchange routing information between different areas, facilitating end-to-end communication.
• OSPF backbone area ensures hierarchical network design, scalability, and efficient routing.
• All OSPF areas must have connectivity to the backbone area for seamless routing in the OSPF domain.
• The stability and connectivity of the backbone area are essential for the overall OSPF network operation.

60. How does OSPF handle network instability caused by link flapping?

Ans:

OSPF employs timers and hello mechanisms to detect link instability and failures. When links flap (rapidly alternate between up and down states), OSPF routers may experience adjacency disruptions. OSPF routers suppress route flapping by ignoring route changes within a certain timeframe. OSPF’s SPF algorithm recalculates routes when network stability is restored, minimizing routing instability.

61. Explain the OSPF LS ageing process.

Ans:

• OSPF periodically checks the age of LSAs.
• LSAs become stale after a certain time.
• Stale LSAs are removed from the LSDB.
• This process ensures network stability.
• Ageing intervals vary based on LSA types.
• OSPF adapts routing information dynamically.

62. How does OSPF support route filtering?

Ans:

• OSPF supports route filtering for control.
• Administrators can control route advertisements.
• Filtering is based on various criteria.
• This ensures better network security.
• It prevents unauthorized route propagation.
• OSPF offers fine-grained routing control.

63. What is the OSPF retransmission interval and its significance?

Ans:

OSPF retransmits packets at intervals, which ensures the reliability of communication. Retransmission intervals are configurable. Short intervals ensure timely packet delivery, while long intervals may increase convergence time. OSPF adjusts retransmission based on network conditions.

64. How does OSPF handle network convergence in transit networks?

Ans:

• OSPF converges efficiently in transit networks.
• Transit networks facilitate data transfer.
• OSPF adapts to topology changes swiftly.
• This ensures minimal disruption to traffic.
• OSPF’s SPF algorithm recalculates routes promptly.
• Transit networks are integral parts of OSPF design.

65. Explain the OSPF graceful restart process in detail.

Ans:

OSPF’s graceful restart ensures network stability. Routers undergo software upgrades without interruption. During restart, routers maintain a forwarding state. Neighbour adjacencies are preserved. This prevents transient packet loss. OSPF gracefully resumes normal operation.

66. How does OSPF handle route summarization across different areas?

Ans:

OSPF summarizes routes to reduce routing table size. Summarization occurs at area boundaries. It aggregates multiple routes into a single route advertisement, reducing LSDB and routing overhead and enhancing network scalability. OSPF carefully balances summarization for optimal routing.

67. Explain the purpose and operation of OSPF virtual links.

Ans:

• OSPF virtual links connect non-backbone areas.
• They establish logical paths through the backbone.
• Virtual links provide connectivity between areas.
• This facilitates routing in non-contiguous areas.
• OSPF uses virtual links to maintain full connectivity.
• They ensure efficient routing in complex topologies.

68. What is the OSPF LS age field, and how does it affect routing updates?

Ans:

• OSPF LS age field tracks LSA age.
• LSAs age over time in OSPF LSDB.
• Ageing ensures up-to-date routing information.
• Stale LSAs are removed from the LSDB.
• OSPF uses LS age for LSA freshness.
• This mechanism maintains network integrity.

69. How does OSPF ensure loop-free routing within an area?

Ans:

• OSPF prevents routing loops within an area.
• It uses the Dijkstra SPF algorithm.
• OSPF maintains a loop-free topology.
• Routes are calculated based on the shortest path.
• LSAs ensure consistent and loop-free routing.
• OSPF’s SPF algorithm guarantees loop avoidance.

70. Explain the concept of OSPF router priority and its role in DR/BDR election.

Ans:

OSPF router priority influences the DR/BDR election. Higher-priority routers are favored. The election ensures efficient network management. OSPF routers elect designated and backup designated routers. Router priority is configurable on OSPF routers. It determines a router’s likelihood of becoming a DR or BDR.

71. How does OSPF handle network partitioning and rejoining?

Ans:

• OSPF routers detect network partitioning through hello packets.
• When a partition rejoins, routers exchange database descriptors.
• OSPF calculates routes based on topology changes.
• Routers sync LSDBs to reconcile network state.
• Network rejoining triggers SPF algorithm recalculation.
• OSPF ensures seamless reintegration through LSAs.

72. What are the differences between OSPFv2 and OSPFv3?

Ans:

• Addressing: OSPFv2 supports IPv4 addressing, while OSPFv3 supports IPv6 addressing.
• Header Format: OSPFv2 uses IPv4 headers, whereas OSPFv3 uses IPv6 headers.
• Authentication: OSPFv2 supports various authentication methods, such as plaintext, MD5, etc., while OSPFv3 mandates the use of IPsec for authentication and integrity.
• Neighbour Discovery: OSPFv2 relies on multicast-based neighbour discovery, whereas OSPFv3 uses link-local multicast and unicast.
• LSA Types: OSPFv2 has different LSA types for different network types, whereas OSPFv3 simplifies this by having fewer LSA types.

73. How does OSPF handle network convergence in a large-scale, multi-area network?

Ans:

• OSPF divides networks into areas for scalability.
• It uses hierarchical LSAs to reduce flooding.
• Routing updates are limited to the area.
• OSPF backbone area facilitates inter-area routing.
• OSPF routers calculate shortest paths independently.
• OSPF convergence scales with network growth.

74. Explain the role of OSPF LSA types in the routing process.

Ans:

LSAs carry network topology information. Types include Router, Network, Summary, and AS External. Each LSA type serves different routing functions. OSPF routers exchange LSAs to build LSDBs. LSAs are used to construct SPF trees. LSA types determine routing updates and calculations.

75. How does OSPF handle authentication between neighbouring routers?

Ans:

OSPF supports plaintext and MD5 authentication. Authentication is configured on OSPF interfaces. Routers exchange authentication keys in hello packets. Misconfigured authentication leads to adjacency failures. Authentication ensures secure OSPF neighborships. OSPF routers reject unauthenticated routing updates.

76. What are OSPF stub areas, and why are they used?

Ans:

• Stub areas reduce LSDB size and flooding.
• They contain summarized routing information.
• OSPF routers in stub areas don’t propagate LSAs.
• ABRs summarize external routes.
• OSPF routers in stub areas use default routes.
• Stub areas enhance OSPF network efficiency.

77. Explain the concept of OSPF database synchronization.

Ans:

• OSPF routers exchange database descriptors.
• They compare LSDBs to detect inconsistencies.
• Routers request missing LSAs from neighbours.
• Database synchronization ensures network consistency.
• LSAs are exchanged to reconcile routing tables.
• OSPF routers maintain synchronized LSDBs for accuracy.

78. How does OSPF handle the election of designated routers (DR) and backup designated routers (BDR)?

Ans:

OSPF routers on multi-access networks elect DR/BDR. They exchange hello packets to elect. The router with the highest OSPF priority becomes DR. DR and BDR facilitate efficient LSDB exchange, minimizing LSDB flooding on multi-access networks.

79. What is the OSPF LSA refresh time and its significance?

Ans:

• OSPF LSAs have a refresh timer.
• Refresh time ensures LSAs remain current.
• LSAs are retransmitted before expiration.
• OSPF routers update LSAs periodically.
• Refresh time prevents stale LSAs in LSDB.
• OSPF network stability relies on timely LSA refresh.

80. Explain the process of OSPF route summarization and its benefits.

Ans:

• OSPF summarizes routes to reduce LSDB size.
• ABRs summarize external routes into areas.
• Summarization reduces LSDB size and overhead.
• OSPF routers use summarized routes for efficiency.
• Route summarization minimizes LSDB flooding.
• OSPF route summarization enhances network scalability.

81. How does OSPF handle route redistribution between different routing domains?

Ans:

OSPF redistributes routes between different routing domains using redistribution policies. Routes learned from one routing protocol are advertised into OSPF and vice versa. Redistribution is controlled through route maps or distribution lists to filter routes. Care must be taken to avoid routing loops and ensure consistent routing tables. Redistribution points are configured on routers to specify where routes are exchanged.

82. What is the OSPF neighbour state machine, and how does it work?

Ans:

The OSPF neighbour state machine defines the stages of neighbour adjacency. States include Down Attempt, Init, 2-Way, ExStart, Exchange, Loading, and Full. Adjacency progresses through these states based on hello packets and database exchange. Neighbours synchronize their LSDBs to ensure consistency. Any disruption causes the neighbour to revert to the Down state and restart the process.

83. How does OSPF handle the detection and recovery from link failures?

Ans:

• OSPF uses hello packets to detect link failures.
• The link is considered down when a neighbour fails to respond to hello packets within the dead Interval.
• OSPF routers then recalculate routes based on the changed network topology.
• Fast detection and reaction to link failures help maintain network stability.
• OSPF routers use the shortest path first algorithm to determine alternate routes.
• Link-state advertisements (LSAs) propagate information about link failures throughout the network.

84. Explain the OSPF router ID selection process.

Ans:

• OSPF routers use a unique identifier called the Router ID (RID) to identify themselves.
• RID can be manually configured or automatically assigned based on certain criteria.
• If manually configured, the RID is set to the specified IP address.
• If not manually configured, OSPF selects the highest IP address of any of its active interfaces.
• The RID should be unique within the OSPF routing domain to avoid conflicts.
• RID changes require restarting the OSPF process to take effect.

85. How does OSPF handle network convergence in the presence of network flapping?

Ans:

OSPF employs mechanisms to handle network flapping and maintain stability during convergence. It uses timers to control the frequency of updates and convergence rate.OSPF routers suppress unnecessary flooding of LSAs during convergence to minimize disruptions.OSPF calculates alternate paths quickly using its SPF algorithm. The routing protocol adapts dynamically to changes in network topology.

86. What is the OSPF SPF tree, and how is it calculated?

Ans:

• OSPF SPF (Shortest Path First) algorithm calculates the shortest path tree.
• It starts from the router’s LSDB and builds a tree with the shortest paths to all destinations.
• Each router independently calculates its own SPF tree based on its LSDB.
• The tree consists of links representing the shortest paths to each destination.
• OSPF routers use the SPF tree to determine the best routes to reach different destinations.
• The algorithm ensures loop-free shortest path determination in the network.

87. Explain the concept of OSPF graceful restart and its implications.

Ans:

OSPF Graceful Restart allows a router to temporarily suspend OSPF operations without losing neighbour relationships. It helps in minimizing routing disruptions during router restarts or upgrades. The restarting router remains in the OSPF neighbour state but stops forwarding traffic. Neighbours continue to forward traffic through the restarting router during the restart process.

88. How does OSPF support route filtering and policy enforcement?

Ans:

OSPF supports route filtering to control which routes are advertised or received. Filters can be applied based on IP address, subnet, or other criteria. Route maps or access lists are used to define filtering policies. Filtering helps control routing information exchange and optimize network traffic.OSPF policy enforcement ensures that only authorized routes are propagated within the network.

89. What are OSPF virtual links, and when are they used?

Ans:

• OSPF Virtual Links establish adjacency between non-backbone areas through the backbone area.
• They are typically used to connect areas separated by a non-OSPF domain.
• Virtual links enable transit traffic to pass through the OSPF domain.
• They are configured between the non-backbone areas’ ABRs (Area Border Routers).
• Virtual links help maintain the integrity of the OSPF routing domain.
• They are a means of extending OSPF connectivity across non-contiguous areas.

90. How does OSPF handle the detection and mitigation of routing loops?

Ans:

• OSPF utilizes various mechanisms to prevent and detect routing loops.
• The SPF algorithm calculates loop-free paths based on LSDB information.
• OSPF uses TTL (Time-to-Live) values to prevent packets from circulating indefinitely.
• Route summarization and route aggregation help minimize the scope of routing updates, reducing the likelihood of loops.
• Route poisoning and split horizon techniques are employed to advertise unreachable routes to prevent loops.
• Regular network monitoring and troubleshooting assist in identifying and resolving loop-related issues.

91. Explain the role of OSPF areas in network scalability and management.

Ans:

OSPF areas partition large networks into smaller segments, enhancing scalability. Each area maintains its own LSDB, reducing routing overhead. Areas also isolate network failures, limiting their impact. This hierarchical structure simplifies management and improves network performance. In summary, OSPF areas promote efficient resource utilization and easier network administration.

92. How does OSPF handle network convergence in transit networks?

Ans:

OSPF uses designated routers (DRs) to streamline communication. DRs reduce the number of adjacencies, enhancing scalability. When links change states, OSPF quickly reconverges through LSA flooding. Transit networks benefit from this rapid convergence, minimizing downtime. OSPF’s DR election and flooding mechanisms ensure efficient transit network operation.

93. What is the OSPF LSDB (Link State Database), and how is it maintained?

Ans:

• The LSDB contains all router-learned LSAs within an OSPF area.
• Each router builds and maintains its LSDB by receiving LSAs from neighbours.
• These LSAs represent the network’s topology and connectivity.
• OSPF routers use LSDBs to calculate shortest paths using the SPF algorithm.
• LSDB consistency is maintained through reliable LSA flooding.

94. How does OSPF handle network convergence in the presence of network partitioning?

Ans:

• OSPF reacts to network partitioning by isolating affected areas.
• When partitions occur, routers continue normal operations within their respective areas.
• OSPF uses LSAs to communicate topology changes, facilitating reconvergence upon partition resolution.
• This approach limits the scope of disruptions and maintains network stability.
• In summary, OSPF’s area-based architecture mitigates the impact of network partitioning.

95. Explain the process of OSPF route summarization and its impact on routing efficiency.

Ans:

Route summarization aggregates multiple routes into a single summary route. OSPF routers advertise summaries to neighboring areas, reducing routing table size. This process conserves network resources and simplifies routing decision-making. By reducing the number of advertised routes, OSPF enhances network scalability. Overall, route summarization optimizes OSPF routing efficiency.
