In the contemporary communication world, the vital feature of networking is that it ensures the transfer of data reliably between the devices in the network. One of the basic protocols that make such communication possible at the data link layer is HDLC, or High-Level Data Link Control. HDLC is a bit-oriented, synchronous data-link layer protocol for point-to-point, point-to-multipoint and multipoint-to-point communications. The ISO first devised the HDLC. Today, one of the most widely accepted and widespread protocols that contributed to the development of other standardized network communication protocols. As a foundational technology, HDLC is crucial in networking, especially in environments like the Internet of Things, where reliable and efficient data communication between devices is essential. Discussing the working principles, frames, modes of operation, and applications, as well as showing a comparison between HDLC with the data link layer protocols like PPP and LAPB.
To Earn Your HDLC Certification, Gain Insights From Leading Cyber Security Experts And Advance Your Career With ACTE’s Cyber Security Course Today!
What is HDLC?
HDLC is a bit-oriented communication protocol that uses synchronous links to transfer data. It mainly operates on the data link layer in OSI, which is the second layer. This works to ensure reliable data communications between several network devices. This includes error correction, flow control, and encapsulation of data. High-Level Data Link Control is ISO-sponsored in developing standard data link layer protocols as a more robust and flexible methodology to manage the transmission of data across different forms of physical media.
Today, it is used extensively in WAN technologies. HDLC can be implemented on any of the following: fiber optics, copper cables, and satellite communication links.HDLC is a multi-purpose protocol that offers for point-to-point, point-to-multipoint, and multi-point communication. The protocol has impacted the design of many of today’s current modern protocols, including PPP (Point-to-Point Protocol) and Frame Relay.

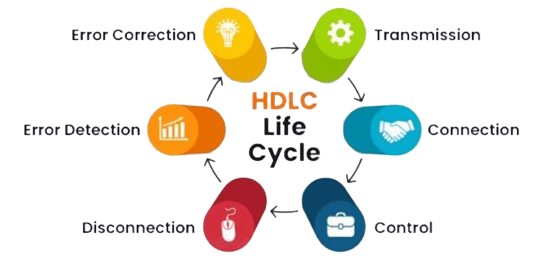

History and Development of HDLC
HDLC was the first protocol developed in the early 1970s as an international standard developed by ISO. It was a versatile and adaptable universal protocol for data communication, allowing its use with various types of hardware and media. While HDLC itself is not directly related to cybersecurity, the concept of data transmission protocols plays a role in areas like Google Hacking Database, where specific vulnerabilities in network protocols and services can be exploited. What spurred the development of HDLC was the necessity for a standardized data link control protocol to accommodate both synchronous and asynchronous modes of communications. It is made to allow flexibility, take its share of errors, and transfer data at a much faster rate compared to its previous versions. HDLC has been specified, adapted, and adapted numerous times in the past decades in response to the needs of modern technologies working with data communication. As a result of these adaptations, other variants, including LAPB (Link Access Procedure Balanced) and PPP (Point-to-Point Protocol), have been developed and are used currently in telecommunication and data networking services.

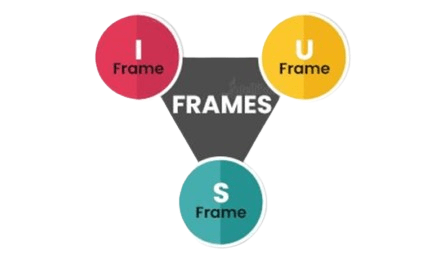

HDLC Frame Format
Flag Field
Flag is a special character used to delimit beginning and end of a frame. It is a unique 8-bit pattern 01111110, indicating the start and end of a frame. This helps the receiver decode the frame correctly by providing a frame boundary.
Address field
This is a field used to specify the destination address of the frame. In point to-point communication, this field refers to the receiving device. In point-to-multipoint configurations, it can address multiple devices on the network.
Control Field
This field contains the control information related to the HDLC frame. It is used to give instructions regarding the operation of the link, whether it is a request, acknowledgment, or response.
Data Field
The Data field contains the actual data that is transmitted across devices. The size of the data field depends on the amount of data that needs to be transmitted.
FCS (Frame Check Sequence)
FCS is used for error detection and appended at the end of the frame. A CRC (Cyclic Redundancy Check) is applied to determine whether the frame was indeed transmitted without errors.
Are You Interested in Learning More About HDLC? Sign Up For Our Cyber Security Course Today!
Modes of Operation
- In Normal Response Mode (NRM), one device, typically the master device, initiates the communication and the slave device can only transmit data when polled by the master device.
- In this mode, the slave device does not have any control over the initiation of a transfer, and the master device has to poll the slave device to see if there is any data.
- This mode is mainly used in point-to-multipoint implementations in which one device controls multiple endpoints. In Asynchronous Balanced Mode, both devices on the link are equal, and either can start a dialogue.
- No device is primary; thus, no device need wait to be polled or request data. The mode is much more efficient. It is typically used in point-to-point communication.
- However, in networking environments, especially in unsecured or poorly configured systems, malicious tools like a Keylogger can be used to monitor and capture sensitive data from communication channels.
- ABM is employed very frequently whenever there is the necessity of high speed communications especially in WAN environments. In Asynchronous Response Mode, or ARM, one device acts as a primary and the other as a secondary.
- In this mode, a primary can send without being requested for permission but a secondary cannot send unless requested to do so by the primary. This mode is less in usage today but is prevalent in many legacy systems.
Working of HDLC
HDLC communication is synchronous in nature, meaning data frames are transmitted continuously with the sender and receiver in a synchronized state. It uses the bit-oriented method of handling data frames so that the frames are correctly formatted and transmitted. The sender places data inside an High-Level Data Link Control frame, which contains the flag, address, control, data, and FCS. The data frame is transmitted over the communication medium. The receiver checks the flag for the beginning and end of frame. The receiver scans the FCS field for transmission error. The receiver can request the sender for re transmission of the frame in case of an error. Once the frame is successfully received, the receiver unpacks the data from the data field and continues with the processing as desired.
Applications of HDLC
- WAN (Wide Area Network): HDLC is used over long distance networks such as in T1 lines and E1 lines.
- Point-to-Point communication: HDLC can be applied in point to point where two devices communicate to exchange data.
- Frame Relay Networks: HDLC forms the base of several frame relay networks. It ensures effective data transfer.
- Satellite Communication: HDLC is used for satellite links in order to ensure reliability with data transmissions over long distances.
- ATM Networks: HDLC is used in ATM networks to ensure data communication of any two devices.
Looking to Master Cybersecurity? Discover the Cyber Security Expert Masters Course Available at ACTE Now!
HDLC vs. PPP (Point-to-Point Protocol)
While HDLC is a very commonly used protocol for controlling data link layers, another quite commonly used protocol is PPP, or Point-to-Point Protocol. PPP, mainly in WAN communications. It supports more authentication schemes than HDLC, that is PAP, or Password Authentication Protocol, and CHAP, or Challenge Handshake Authentication Protocol, whereas HDLC does not support any such scheme for authentication. PPP supports dynamic addressing and configuration. HDLC does not support these by default. HDLC is way much more rigid and less flexible than PPP for managing different types of networks and configurations. In the context of Network Penetration Testing , it is important to understand the limitations and potential vulnerabilities of both HDLC and PPP. While both protocols include error-checking capabilities, PPP allows for more sophisticated management of network connections, making it suitable for a broader range of applications, including dial-up and broadband internet connections. Moreover, PPP supports multi-protocol encapsulation, which means it can carry multiple network layer protocols such as IP, IPX, and AppleTalk, whereas HDLC is primarily focused on transmitting data in a single protocol. This makes PPP a more versatile option for modern networking, especially in dynamic, diverse, and rapidly changing environments like the internet. As a result, PPP has become the protocol of choice for many service providers, while HDLC remains essential in legacy systems and environments that require more rigid control and simpler implementations.
HDLC vs. LAPB (Link Access Procedure Balanced)
HDLC is as similar as LAPB (Link Access Procedure Balanced), which is a protocol utilized in X.25 networks. Both these protocols ensure error checking and frame synchronization. However, this specific protocol LAPB is the usual application in X.25 networks though, its usage is very broad and extensive while other types of networks use HDLC. LAPB can be considered a subset of HDLC having very specific applications in older networking protocols. Actually, there are a lot of similarities between HDLC and LAPB, but when applying the comparison, probably the greatest difference lies in the scope of their use and implementation. HDLC is a general-purpose protocol with a high degree of versatility and is applied to most types of networks, including WAN, LAN, and satellite communication links. LAPB was designed specifically for the X.25 networks, used formerly for packet switching communications within many older telecommunication systems. LAPB is even more limited in usage, and, in fact, controls data link layer communications in just such specialized networks. Even though the application is narrower, LAPB retains fundamental HDLC characteristics- error detection via cyclic redundancy checks (CRC) and frame synchronization>
Advantages and Disadvantages of HDLC
Advantages: HDLC employs an effective error-detecting procedure that can be obtained via FCS or Frame Check Sequence. HDLC has several applications in various communication configurations, such as point-to-point and point-to-multipoint networks. The protocol has a simple structure, and hence, the system is easy to implement and keep track of.
Disadvantages: HDLC is not as dynamic as modern protocols like PPP when discussing schemes of addresses. The bit-oriented type of HDLC is rather inefficient when used in wireless communications, meaning it will consume more bandwidth. In the context of Risk Threat and Vulnerability management, this inefficiency in HDLC can introduce potential risks.
Preparing for Cyber Security Job Interviews? Have a Look at Our Blog on Cyber Security Interview Questions and Ace Your Interview!
Conclusion
HDLC is a powerful, adaptive, and reliable protocol used at the data link layer to ensure that data flows smoothly and freely. From its origins with WAN environments to point-to-point communication and even frame relay networks, High-Level Data Link Control has developed as an error-free, synchronous form of communication. Although partially displaced by more enhanced protocols such as PPP, its use today remains relevant in the modern networking context. Understanding the architecture, modes, and applications of HDLC is highly important to any network professional especially those on the waters of telecommunications and data communication systems. HDLC continues to be useful in the present as it is simple, robust in stable, dependable data environments, and difficult to nullify when stability and dependable data transmission are of prime importance. Newer protocols such as PPP allow for greater flexibility and support dynamic configurations, yet HDLC remains a solid choice for applications that require a structured, deterministic approach to data link communication. Its ability to support a variety of modes of operation, such as Normal Response Mode (NRM), Asynchronous Balanced Mode (ABM), and Asynchronous Response Mode (ARM), thereby allowing customization based on specific network needs, makes HDLC quite reliable in legacy systems, an area where network conditions necessitate minimal overhead. Deep knowledge of HDLC’s features and limitations helps network engineers and telecom professionals make the right decisions regarding the protocols for different applications, thereby optimizing performance and reliability in network infrastructure.
