Syntax Analysis in Compiler Design: A Complete Guide

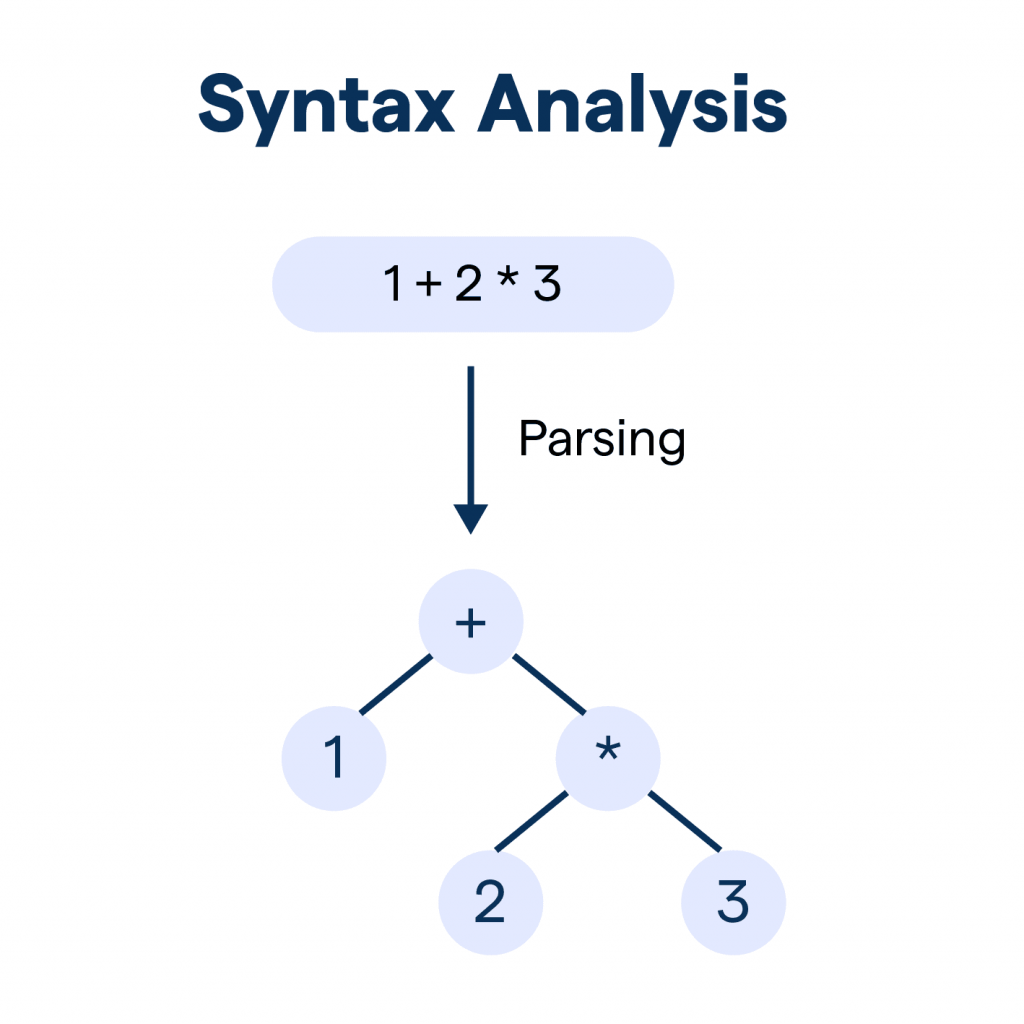

Role of Syntax Analyzer (Parser)

• Checks the syntactic structure of the source code based on the grammar of the programming language.
• Generates a parse tree or abstract syntax tree (AST) to represent the hierarchical structure of the code.
• Detects and reports syntax errors (e.g., missing semicolons, unmatched parentheses, incorrect nesting).
• Ensures correct order and nesting of tokens produced by the lexical analyzer.
• Provides input to the semantic analyzer for further meaning-based validation of the code.
• Supports error recovery, allowing compilation to continue even after encountering syntax errors.
• Bridges the gap between lexical analysis and semantic analysis, forming a critical middle step in compilation.




Would You Like to Know More About Web Developer? Sign Up For Our Web Developer Courses Now!




Difference Between Syntax and Lexical Analysis

Lexical Analysis:

• Converts the raw source code into tokens (basic units like keywords, identifiers, symbols).
• Works on the character stream of the source code.
• Detects lexical errors such as invalid characters or unknown tokens.
• Uses techniques like finite automata and regular expressions.
• Outputs a stream of tokens to the syntax analyzer.
• Is the first phase of the compiler.

Syntax Analysis:

• Takes tokens from lexical analysis and checks their arrangement according to grammar rules.
• Works on the stream of tokens.
• Detects syntax errors such as incorrect statement structure or misplaced tokens.
• Uses context-free grammars and parsing algorithms (like LL, LR parsing).
• Produces a parse tree or abstract syntax tree (AST) representing the program structure.
• Is the second phase of the compiler.






Develop Your Skills with Web Developer Certification Course

Weekday / Weekend BatchesSee Batch Details

Types of Parsers: Top-Down and Bottom-Up

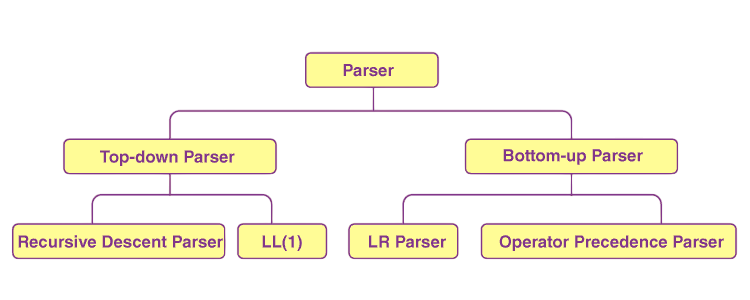

Parsers are broadly categorized into two types:

Top-Down Parsers:

• starts from the highest-level rule (start symbol) and breaks it down recursively.
• Often implemented using recursive descent parsing or predictive parsing.
• Uses a lookahead token to decide which production rule to apply next (in predictive parsers).
• Simple to implement but may struggle with left-recursive grammars (which cause infinite recursion).
• Suitable for LL(k) grammars, where parsing decisions are made looking ahead k tokens. Errors can be detected early during parsing.



Bottom-Up Parsers:

• Start with the input tokens and work towards the start symbol by applying reductions. Use techniques like Shift-Reduce Parsing.
• Common types include LR parsers (Left-to-right scanning, Rightmost derivation in reverse), such as SLR, LALR, and Canonical LR parsers.
• Can handle a larger class of grammars compared to top-down parsers, including left-recursive grammars.




Are You Interested in Learning More About Web Developer? Sign Up For Our Web Developer Courses Today!




Context-Free Grammars (CFGs) and Parse Trees

Context-Free Grammars

• A Context-Free Grammar is a formal grammar used to define the syntax of programming languages.
• It consists of four components: a set of non-terminal symbols, terminal symbols, production rules, and a start symbol.
• Production rules specify how non-terminals can be replaced by sequences of terminals and/or non-terminals.
• CFGs are powerful enough to describe nested and recursive language structures, such as balanced parentheses and conditional statements.
• They form the theoretical basis for most programming language syntax definitions and parsing algorithms.

Parse Trees

• A Parse Tree is a tree representation that shows how a string (program code) is derived from a CFG.
• The root of the parse tree is the start symbol of the grammar.
• Internal nodes represent non-terminal symbols, while leaves represent terminal symbols (tokens).
• The tree visually illustrates the hierarchical structure of the source code according to the grammar rules.
• Parse trees are used by compilers during syntax analysis to verify correct program structure and aid in later stages like semantic analysis.




Web Development Sample Resumes! Download & Edit, Get Noticed by Top Employers! Download

LL(1) Parsing – Theory and Example

LL(1) Parser is a type of top-down parser that parses input from Left to right and constructs a Leftmost derivation using 1 lookahead symbol.LL(1) parsing is a top-down parsing technique used to analyze a subset of context-free grammars known as LL(1) grammars. The term “LL(1)” indicates that the parser reads the input from Left to right, produces a Leftmost derivation, and uses 1 lookahead token to decide which production rule to apply.

Steps in LL(1) Parsing:

• Construct First and Follow sets.
• Build the parsing table.
• Use a stack and input buffer for derivation.

Example:

1. cE → TE’
2. E’ → +TE’ | ε
3. T → FT’
4. T’ → *FT’ | ε
5. F → (E) | id

LL(1) parsing uses lookahead to decide which production to apply. The parsing table helps direct parsing decisions efficiently.




Conclusion

In conclusion, LL(1) parsing is a fundamental and efficient top-down parsing technique that provides a clear and deterministic method for Syntax Analysis in Compiler Design of suitable grammars. By leveraging a single lookahead token and predictive parsing strategies, Role of Syntax Analyzer it enables fast and accurate parsing without backtracking. While its application is limited to grammars free of left recursion and ambiguity, LL(1) parsing remains a popular choice in compiler design due to its simplicity and ease of implementation. Understanding LL(1) parsing lays a strong foundation for exploring more advanced parsing techniques and deepening one’s grasp of compiler construction.
