- Introduction to Spring Framework
- Overview of Spring MVC Architecture
- Key Features of Spring MVC
- Model-View-Controller Design Pattern Explained
- Setting Up a Spring MVC Project
- Components of Spring MVC (DispatcherServlet, Controllers, Views, etc.)
- Handling Requests and Mapping URLs
- Conclusion
Introduction to Spring Framework
The Spring Framework is a powerful, feature-rich, open-source application development framework for Java. Its design philosophy revolves around the core principles of modularization, loose coupling, and separation of concerns. At its heart lies the support for dependency injection (DI) and aspect-oriented programming (AOP), which allows developers to build scalable and maintainable applications. Spring supports a range of modules like Spring Core, Spring AOP, Spring Data, Spring Security, and Spring MVC each catering to a specific need of enterprise application development. Among them, Spring MVC (Model-View-Controller) is a robust framework designed for building web applications that follow the MVC design pattern, offering flexibility and clean separation between presentation and business logic.The Spring Framework is a powerful, open-source framework for building enterprise-level Java applications. Designed to simplify the development process, Spring provides comprehensive infrastructure support for developing robust, scalable, and maintainable applications. At its core, Spring promotes loose coupling through Dependency Injection (DI) and supports Aspect-Oriented Programming (AOP) to separate cross-cutting concerns like logging and security. It offers a wide range of modules, including Spring MVC for web applications, Spring Data for database access, and Spring Boot for rapid application development. Widely used in the Java ecosystem, Spring helps developers build clean, testable, and efficient applications with minimal configuration.
To Earn Your Web Developer Certification, Gain Insights From Leading Data Science Experts And Advance Your Career With ACTE’s Web Developer Courses Today!
Overview of Spring MVC Architecture

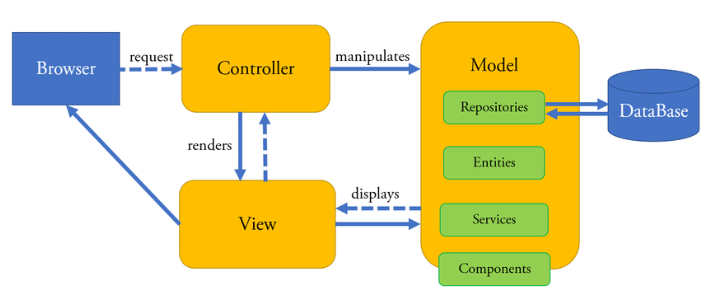

Spring MVC is built upon the Servlet API and leverages the core Spring functionalities to provide a structured web development experience. It is based on the Model-View-Controller design pattern, which segregates the application logic into three interconnected components:
- Model: Represents application data and business logic.
- View: Renders the model data and presents it to the user.
- Controller: Intercepts user input, processes it, and returns an appropriate model and view.
- DispatcherServlet: The front controller that intercepts all incoming HTTP requests.
- HandlerMapping: Maps the request URL to appropriate controller methods.
- Controller: Annotated classes that handle requests and return responses.
- ModelAndView: Combines model data and logical view name.
- ViewResolver: Resolves view names to actual views like JSPs or Thymeleaf templates.
Main Components of Spring MVC Architecture:
Key Features of Spring MVC
- Annotation-Based Programming: Use of annotations like @Controller, @RequestMapping, and @Autowired simplifies configuration.
- Flexible View Support: Integrates with various technologies such as JSP, Thymeleaf, Velocity, and FreeMarker.
- Built-in Validation and Binding: Supports data binding and validation out-of-the-box.
- Exception Handling Mechanism: Easy configuration for centralized exception handling using @ControllerAdvice.
- RESTful Web Services Support: Seamless support for creating RESTful endpoints using annotations.
- Integration with Spring Security and ORM tools: Provides end-to-end enterprise solutions.
- Model: Represents the data layer. In Spring MVC, these are typically POJOs or entities managed by service and DAO layers.
- View: The presentation layer. It retrieves model data and displays it using JSP, Thymeleaf, or other view technologies.
- Controller: Acts as the coordinator between view and model. Accepts requests, invokes business logic, and returns a logical view name.
- User sends a request to the server.
- DispatcherServlet intercepts the request.
- HandlerMapping identifies the corresponding controller.
- Controller processes the request and returns a ModelAndView.
- ViewResolver identifies the physical view.
- The response is rendered and returned to the user.
- Java Development Kit (JDK 8+)
- Maven or Gradle for dependency management
- IDE (Eclipse, IntelliJ)
- Tomcat Server (Optional if not using Spring Boot)
- src/main/java/com/example/controller
- src/main/java/com/example/model
- src/main/webapp/WEB-INF/web.xml
- src/main/webapp/WEB-INF/views/index.jsp
-
-
spring -
org.springframework.web.servlet.DispatcherServlet -
1 -
-
spring -
/ - DispatcherServlet: Central controller of the MVC application.
- Controllers: Java classes annotated with @Controller, defining methods to handle requests.
- ModelAndView: Used by controllers to return model data and view name.
- ViewResolver: Determines the actual view (JSP, HTML, etc.).
- HandlerMapping: Maintains the mapping between request and controller method.
- @Controller
- public class HomeController {
- @RequestMapping(“/”)
- public String home(Model model) {
- model.addAttribute(“message”, “Welcome to Spring MVC”);
- return “index”;
- }
- }
- @RequestMapping
- @GetMapping, @PostMapping, @PutMapping, @DeleteMapping
- @PathVariable, @RequestParam
- @GetMapping(“/user/{id}”)
- public String getUser(@PathVariable int id, Model model) {
- model.addAttribute(“userId”, id);
- return “userDetails”;
- }
- }
- }
Would You Like to Know More About Web Developer? Sign Up For Our Web Developer Courses Now!
Model-View-Controller Design Pattern Explained
Request Flow in Spring MVC:
Develop Your Skills with Web Developer Certification Course
Weekday / Weekend BatchesSee Batch DetailsSetting Up a Spring MVC Project
Pre-requisites:
Project Structure:
web.xml Configuration:
Are You Interested in Learning More About Web Developer? Sign Up For Our Web Developer Courses Today!
Components of Spring MVC
Sample Controller Code:
Handling Requests and Mapping URLs
Spring MVC offers a declarative way to map HTTP requests using annotations:
Example:
Conclusion
In conclusion, Spring MVC is a powerful and flexible web framework that follows the Model-View-Controller design pattern, making it easier to build well-structured and maintainable Java web applications. Its modular architecture, robust request handling, and seamless integration with other Spring modules make it a popular choice among developers. By understanding its core components and setup process, developers can build scalable, testable, and efficient web applications with ease.Spring MVC continues to be a preferred choice for enterprise web application development. Its modular architecture, ease of integration with other Spring modules, and ability to build REST APIs make it ideal for both monolithic and microservices applications. By following best practices and leveraging its powerful features, developers can build robust, maintainable, and secure Java web applications.
