Overview of Azure ExpressRoute

Azure ExpressRoute is a service that allows users to establish private, dedicated network connections between their on-premises infrastructure and Microsoft Azure data centers. Unlike traditional internet-based connections, ExpressRoute directly links to Azure, bypassing the public internet. This enhances security, performance, and reliability by offering more predictable latency and higher availability. Microsoft Azure Training covers various services, including ExpressRoute, which is ideal for organizations needing secure, high-performance connectivity for critical applications, large data transfers, or hybrid cloud configurations. ExpressRoute is widely used by enterprises that need to connect their on-premises infrastructure to the cloud with guaranteed performance and enhanced security.

    Subscribe For Free Demo

    [custom_views_post_title]

    How Azure ExpressRoute Works

    Azure ExpressRoute establishes a private connection between a customer’s on-premises network and the Azure cloud through a dedicated circuit. This connection is provisioned and managed by a service provider, which offers the physical link from the customer’s data center to the Azure region or data center of their choice.The setup involves three key components:

    • Customer Premises Equipment (CPE) includes the routers or network equipment at the customer’s end that connects to the service provider’s network.
    • Service Provider Network:A carrier or service provider offering the infrastructure for the dedicated link between the on-premises network and Microsoft azure in cloud computing.
    • Distributed Tracing Across Microservices: Modern applications can have many microservices collaborating. AWS X-Ray offers robust distributed tracing features to observe how requests travel through various services and where problems happen during these interactions.
    • Azure Edge Router is where the provider’s network connects with the Azure data centers, forming the link to Azure’s virtual networks and resources.

    Depending on the organization’s needs, express route connections can be made to specific Azure regions or globally across multiple Azure data centers.


    Excited to Achieve Your Microsoft Azure Certification? View The Microsoft Azure Online course Offered By ACTE Right Now!

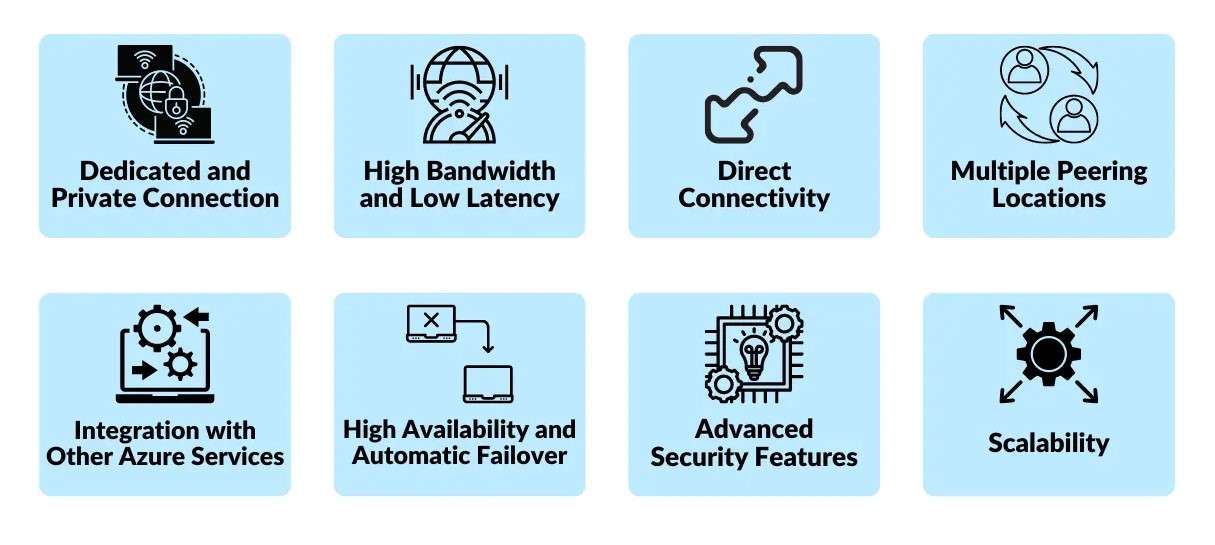

    Benefits of Using ExpressRoute

    • Enhanced Security: Since the traffic doesn’t traverse the public internet, ExpressRoute connections are more secure than traditional internet-based VPNs. Data is transmitted over a private network, minimizing exposure to external threats.
    • Higher Performance: ExpressRoute provides dedicated bandwidth, ensuring stable and predictable network performance. Unlike VPNs that can experience fluctuations due to internet congestion, ExpressRoute connections offer more consistent speeds.
    • Reliability: ExpressRoute offers a Designing SLA structure with high uptime guarantees, reducing the risk of downtime compared to public internet connections.
    • Low Latency: With a private and dedicated network path, latency is lower and more consistent than that of internet-based connections, which makes it ideal for performance-sensitive applications.
    • Data Privacy and Compliance: ExpressRoute bypasses the public internet, enabling organizations to meet compliance requirements for data privacy and integrity. This makes it suitable for industries like finance, healthcare, and government.
    • Better Integration with Hybrid Cloud: ExpressRoute allows organizations to extend their on-premises networks to Azure, creating a seamless hybrid cloud environment.

    Setting Up ExpressRoute Connections

    Azure Expressroute is not a direct Azure service; it requires a network service provider that supports the ExpressRoute offering. Microsoft partners with several telecom and network providers who will provide the physical link. The service provider provisions the ExpressRoute circuit, which involves connecting your on-premises network to the Azure edge routers. You need to configure routing for your ExpressRoute circuit. This includes configuring Border Gateway Protocol (BGP) for dynamic routing to ensure proper communication between your on-premises network and Azure. In Azure, create a virtual network gateway to connect to your ExpressRoute circuit. This gateway enables communication between your on-premises network and Azure virtual networks. Once the connection is set up, you can link the ExpressRoute circuit to your Azure resources, such as virtual machines, storage accounts, or other cloud services. After configuring the connection, test the connectivity and performance of the ExpressRoute circuit. Azure provides tools for monitoring and diagnosing any issues with the circuit.

    Course Curriculum

    Develop Your Skills with Azure Expressroute Online course

    Weekday / Weekend BatchesSee Batch Details

    ExpressRoute Connectivity Models

    Azure ExpressRoute offers several connectivity models, each suitable for different use cases. These models determine how the on-premises network connects with Azure:

    • Point-to-Site: A point-to-site connection allows devices like laptops or remote offices to connect to Azure through a VPN over the ExpressRoute circuit. This model is used when connecting single devices or remote locations.
    • Site-to-Site: In a site-to-site connection, an entire office or data center can be connected to Azure via a dedicated ExpressRoute circuit. This is ideal for organizations that need to integrate on-premises infrastructure with cloud applications on a larger scale.
    • Global Reach: This model allows you to extend the ExpressRoute connection globally, enabling seamless connections between regions or international offices. This is useful for organizations that operate globally and need consistent cloud access worldwide while ensuring Secure and efficient azure storage management.
    • ExpressRoute Direct: With ExpressRoute Direct, customers can have a direct, dedicated physical connection to Azure, enabling greater control and redundancy. Large enterprises or those requiring large-scale, high-throughput connectivity often use this.

    • Thrilled to Achieve Your Microsoft Azure Certification? View The Microsoft Azure Online Course Offered By ACTE Right Now!


      ExpressRoute vs VPN: Key Differences

      Both ExpressRoute and VPN provide connectivity between on-premises networks and Azure, but they differ in several key areas:

      Feature ExpressRoute VPN
      Connection Type Private, dedicated connection over service provider’s network Public internet-based connection
      Performance Consistent, high bandwidth with low latency Variable performance, depending on internet conditions
      Security More secure, as it does not traverse the public internet Less secure, as it is susceptible to internet traffic, traverse the public internet
      Reliability High reliability with SLAs Dependent on internet reliability /task
      Cost Typically higher due to dedicated connection Lower cost, but can become costly at large scale
      Scalability: Can handle large-scale, high-bandwidth needs Limited by internet bandwidth and VPN throughput

      In summary, ExpressRoute is the better choice when performance, security, and Reliability is a top priority. VPNs are more cost-effective but lack the reliability and consistency of ExpressRoute.

      Security and Compliance in ExpressRoute

      Since ExpressRoute does not use the public internet, it provides a more private and secure path for data transmission, reducing exposure to potential threats. ExpressRoute meets various regulatory standards, including those set by industry-specific certifications like HIPAA, PCI DSS, and GDPR. Organizations can use ExpressRoute to comply with legal and industry data security and privacy regulations. Customers can leverage Azure network security tools such as Network Security Groups (NSGs), Azure Firewall, and DDoS Protection to protect their networks while using ExpressRoute. While ExpressRoute does not encrypt the traffic by default, customers can implement encryption at the application or virtual network level to ensure data privacy during transit. One of the main reasons customers choose Azure ExpressRoute is its low latency and high-performance connectivity, which is often highlighted in Microsoft Azure Training as a key advantage for enterprise networking. Since the traffic is not routed through the public internet, it avoids internet congestion, resulting in a more predictable and consistent performance. ExpressRoute offers guaranteed bandwidth for your connection, making it ideal for mission-critical applications that require consistent performance. ExpressRoute provides much lower latency compared to typical VPN connections. This is crucial for real-time VoIP, video conferencing, and financial transactions. ExpressRoute provides an SLA that guarantees uptime and availability for your connection, which is vital for businesses that rely on cloud services for their daily operations. ExpressRoute offers global reach with direct connections to multiple Azure regions, ensuring seamless and consistent performance for organizations operating across different geographies.

      Cloud Computing Master’s Degree in Cloud Computing? Enroll For Cloud Computing Master Certification Today!

      Integration with Azure Services

      • Azure Virtual Networks: ExpressRoute enables private, secure connectivity to Azure Virtual Networks (VNets), allowing customers to extend their on-premises network into the cloud.
      • Azure Storage and Databases: Organizations can use ExpressRoute to connect directly to Azure Storage accounts, SQL Database, or other cloud services, improving data transfer speeds and security.
      • Azure Site Recovery and Backup: ExpressRoute offers a reliable and high-speed connection for Azure Site Recovery and Backup, making it easier to ensure business continuity and disaster recovery.
      • Hybrid Cloud Solutions: ExpressRoute is essential for creating hybrid cloud environments, where on-premises workloads and Azure services interact seamlessly and securely.

      Pricing and Cost Management

      Azure ExpressRoute pricing, as part of a Microsoft Azure Solution Architect‘s considerations, depends on several factors, including the circuit’s bandwidth, the chosen connectivity model, and the data center regions. Pricing components typically include:

      • Circuit Provisioning Cost: The cost of setting up and provisioning the dedicated circuit is usually billed monthly.
      • Data Transfer Charges: If you’re transferring large volumes of data between on-premises and Azure, data transfer charges apply. ExpressRoute includes both inbound and outbound data transfer options.
      • Bandwidth Costs: Pricing varies based on the bandwidth chosen, with higher bandwidth options costing more. It’s essential to select the appropriate bandwidth based on your workload requirements.
      • Location-Specific Pricing: Different Azure regions have different pricing structures, so it’s essential to consider the geographic location of your resources and ExpressRoute connections.

      Set to Ace Your Microsoft Azure Job Interview? Check Out Our Blog on Microsoft Azure Interview Questions & Answer

      Everyday Use Cases for ExpressRoute

      Many organizations use ExpressRoute to create a hybrid cloud environment, extending their on-premises data centers to Azure. This setup is ideal for organizations with sensitive workloads that require both on-premises and cloud resources. ExpressRoute is commonly used to ensure business continuity by providing secure, low-latency connections between on-premises environments and Azure’s disaster recovery services. Applications that require fast, large-scale data transfers between on-premises systems and Azure (such as Big data analytics, media content distribution, and real-time financial data processing) benefit from ExpressRoute’s high bandwidth and low latency. Organizations in regulated industries like healthcare, finance, and government leverage ExpressRoute to ensure data privacy and meet compliance requirements while transferring sensitive data.

      Best Practices for Implementing ExpressRoute

      • Plan for Redundancy – To avoid potential failures, it is essential to set up redundant connections and circuits across different geographic locations, ensuring continuous availability.
      • Monitor Performance – Continuously monitor the performance of your ExpressRoute circuit using Azure’s monitoring tools, adjusting configurations as necessary to maintain optimal performance.
      • Leverage Network Security Tools – Azure’s security services, including network security groups, firewalls, and encryption, safeguard data transmitted over ExpressRoute.
      • Choose the Right Bandwidth – Accurately assess your organization’s bandwidth requirements to avoid over or under provisioning. Monitor usage to adjust bandwidth as necessary.
      • Plan for Scaling – As your business grows, your connectivity needs will change. Ensure your ExpressRoute setup can quickly scale to meet future demands without disruption.
      Azure Expressroute Online course Sample Resumes! Download & Edit, Get Noticed by Top Employers! Download

      Conclusion

      Azure ExpressRoute provides enterprises with a private, dedicated connection to Microsoft Azure, bypassing the public internet for enhanced security, performance, and reliability. It is particularly beneficial for organizations requiring consistent network performance, low latency, and compliance with strict data privacy regulations. By leveraging ExpressRoute, businesses can integrate their on-premises infrastructure with Azure services, enabling a hybrid cloud environment that supports workloads with high availability and redundancy. ExpressRoute connections offer multiple circuit bandwidth options, redundant paths for resiliency, and integration with Microsoft’s global network, ensuring superior connectivity. To maximize the benefits of ExpressRoute, organizations should carefully plan their deployment by choosing the appropriate connectivity model—whether via a network service provider or direct peering—while leveraging Microsoft Azure Training to ensure teams understand best practices for implementation. Additionally, monitoring traffic patterns is crucial to optimizing cost and performance. Implementing best practices such as encryption, traffic segmentation, and proactive network monitoring can further enhance security and efficiency. Ultimately, Azure ExpressRoute is a powerful solution for enterprises looking to establish a robust and scalable hybrid cloud strategy, facilitating secure and seamless access to Azure services while maintaining control over their network infrastructure.
