Introduction to Amazon Machine Image (AMI)
Amazon Machine Image (AMI) is an essential concept in AWS. It provides a pre-configured environment for launching EC2 (Elastic Compute Cloud) instances. AMI acts as a template that includes the operating system, application server, and applications, helping you quickly create and deploy instances with a predefined configuration. Understanding AMIs and how to work with them is crucial for AWS users as they play a pivotal role in cloud applications’ scalability, flexibility, and manageability.
Importance of AMI in AWS
The primary role of an AMI is to simplify the process of launching EC2 instances. Using an AMI, you can avoid the manual configuration of each new EC2 instance and instead deploy multiple instances quickly and consistently. Some of the key benefits of using AMIs include standardized environments, which allow EC2 instances to be deployed with a predefined, consistent configuration. This is especially important for maintaining consistency across different environments, such as development, testing, and production. AMIs also enable rapid scaling, allowing you to easily launch many EC2 instances based on the same image to handle increased demand. With automation and efficiency, AMIs support launching instances with specific configurations without manual setup, boosting operational efficiency—knowledge that is emphasized in Amazon Web Services Training, particularly for large-scale environments. Additionally, AMIs provide cost efficiency, as they save time in deployment and reduce the overall costs of cloud infrastructure and management. Furthermore, AMIs help streamline disaster recovery by ensuring that identical environments can be quickly recreated in case of failure. Finally, using AMIs can enhance security, as you can create instances with the most up-to-date patches and configurations.
Components of an AMI
An AMI contains several essential components that define the configuration of an EC2 instance:
- Root Volume: The root volume of the AMI contains the operating system and can be either an EBS (Elastic Block Store) volume or an instance store (local storage). It is also where the instance’s OS and initial configuration reside.
- Launch Permissions: This defines who can launch instances from the AMI. It controls access to the AMI, whether public, private, or shared with specific AWS accounts.
- Block Device Mapping: This part of an AMI defines how storage volumes are attached toAWS EC2 instances when launched. It specifies the size and type of EBS volumes or instance store volumes and any additional volumes that should be attached.
- Metadata: An AMI’s metadata includes information about the AMI, such as the region where it is stored, the operating system version, and any additional settings. This allows AWS to identify and manage the AMI effectively.
Excited to Obtaining Your AWS Certificate? View The AWS Course Offered By ACTE Right Now!
Types of Amazon Machine Images
There are different types of AMIs available, depending on your needs and requirements. AWS Marketplace AMIs are pre-packaged with third-party software and applications from the AWS Marketplace. These images typically include popular enterprise applications, development tools, and specific solutions that simplify software installation. Custom AMIs allow users to capture the exact configuration of an EC2 instance, such as installing a specific software stack and then creating an AMI from that instance to replicate the environment elsewhere. Public AMIs, provided by AWS, are freely available and often include standard Linux and Windows distributions like Ubuntu, CentOS, and Windows Server. Private AMIs are created by users and kept private, accessible only to the user or specific AWS accounts, making them ideal for customized environments—such as those used in AWS Workspaces or for sensitive data that shouldn’t be shared publicly. Community AMIs are shared by other AWS users and available for public use, typically for open-source software or other public projects. While anyone can access these AMIs, they may not be suitable for production workloads due to potential security risks. Additionally, choosing the right AMI type ensures better control over configurations and optimizes the deployment process for both development and production environments. Finally, managing AMIs properly helps with version control, reducing configuration drift and making it easier to maintain consistency across multiple instances.

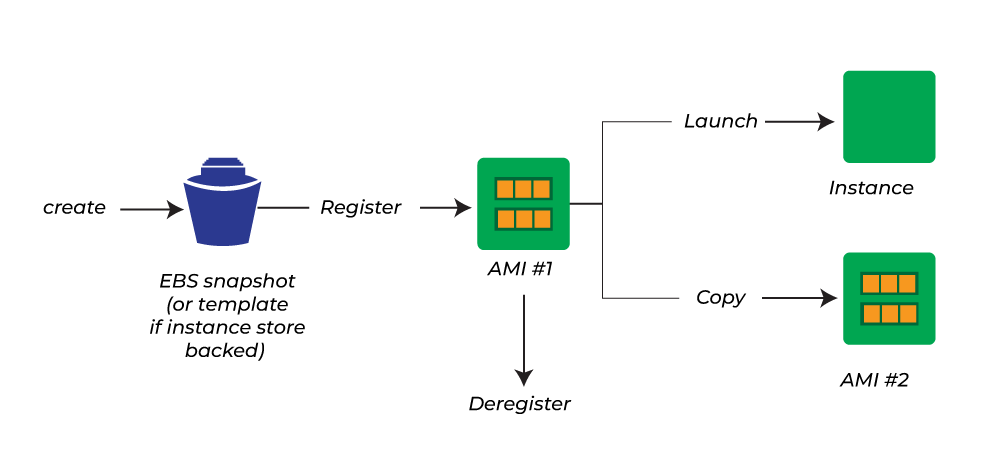

Creating an AMI in AWS
Creating an AMI involves capturing the state of an EC2 instance, including its operating system, application configurations, and data. Here’s how to create an AMI in AWS:
- Launch an EC2 Instance: Launch an EC2 instance with the desired configuration. This instance can be configured with an operating system, application stack, and other settings needed for your application.
- Install and Configure Applications: Install any necessary applications and services on the EC2 instance, configure them according to your requirements, and ensure the instance is ready for use.
- Create an AMI: Once your EC2 instance is configured, navigate to the EC2 Dashboard in the AWS Management Console, select the instance you want to create an AMI from and choose the “Create Image” option. This will create a snapshot of the instance, capturing its current state.
- Provide Image Details: When creating the AMI, provide a name, description, and relevant tags to help identify the image later. You can also specify block device mappings for additional EBS volumes.
- Launch Instances from the AMI: After the AMI is created, you can use it to launch new EC2 instances with the same configuration as the original instance.
Using AMI for EC2 Instances
Once an AMI is created, it can launch multiple EC2 instances with the same configuration. This enables rapid scaling, ensures consistency across instances, and simplifies management. Some common use cases include scaling out, where you can launch multiple EC2 instances from the same AMI when traffic increases to meet demand. Disaster recovery is another key use case, as you can quickly launch a new instance from an AMI if an instance is lost or unavailable, restoring the environment to its previous state. In development and testing, developers can create AMIs from their development environments and use them to spin up new instances with identical configurations, ensuring consistency for testing purposes. AMIs are also beneficial for maintaining high availability, allowing you to quickly replicate a working environment across multiple regions or availability zones. Additionally, AMIs provide a streamlined method for managing application updates by creating a new version of the AMI with the updated software, making it easier to deploy new instances without manual intervention—a concept often emphasized in AWS Training. Finally, using AMIs for infrastructure-as-code practices simplifies automation and improves deployment speed.
Thrilled to Achieve Your AWS Certification? View The AWS Online Training Offered By ACTE Right Now!
Sharing and Copying AMIs
AMI sharing allows you to share your custom images with other AWS accounts, which is helpful for teams or organizations that need to share specific configurations. To share an AMI:
- Modify Launch Permissions: You can modify the permissions to allow specific AWS accounts to launch instances from your AMI. Alternatively, you can make the AMI public for everyone to use.
- Copying AMIs: If you need to create a copy of an AMI in another AWS region, you can use the “Copy AMI” feature in the AWS Management Console. This is especially helpful for maintaining a consistent infrastructure across multiple areas.
- Transferring AMIs: You can also transfer them between accounts by sharing them and copying them to a new account. However, ensure that any data associated with the AMI, such as EBS volumes, is also transferred securely.

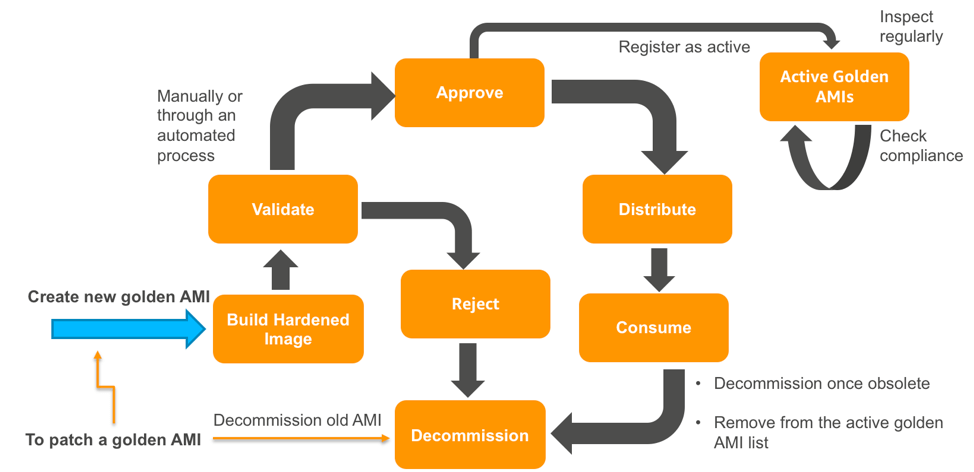

AMI Lifecycle Management
Managing the lifecycle of your AMIs through the AWS Console is essential to prevent stale, unused, or outdated images from consuming valuable resources and storage. One key practice is performing regular cleanups, where you review and remove old or unused AMIs to avoid unnecessary costs. Automated processes can be set up to delete AMIs after a specified period, reducing manual intervention. Versioning your AMIs is another important practice, as it allows you to track and revert to previous configurations when necessary, especially in environments with large teams. Automation plays a crucial role in managing the AMI lifecycle, and using AWS services like Lambda, CloudWatch, and others can help automate the creation, management, and deletion of AMIs. This ensures consistency, streamlines operations, and increases overall efficiency, reducing the administrative burden associated with manual AMI management. Additionally, regularly updating and cleaning up AMIs also enhances security by eliminating obsolete configurations that may be vulnerable to exploitation.
Security Considerations in AMI
Security is paramount when working with AMIs. There are several best practices to follow to ensure that your AMIs are secure:
- Use Encryption: Ensure that sensitive data within the AMI, such as application configurations or credentials, is encrypted. AWS offers EBS encryption to encrypt data stored on the root and additional volumes.
- Limit Access: Set appropriate permissions for who can access and launch your AMIs. Use IAM (Identity and Access Management) policies to restrict access to AMIs based on specific roles or users.
- Use Secure AMIs: Always choose or create AMIs from trusted sources. Ensure the AMI has been patched for the latest security vulnerabilities before launching its instances.
- Monitor and Audit: Utilize AWS CloudTrail and CloudWatch to monitor AMI usage, access, and changes to ensure compliance and security.
Are You Considering Pursuing a AWS Master’s Degree? Enroll For AWS Master Course Today!
AMI vs. Snapshots – Key Differences
While both AMIs and snapshots capture the state of an EC2 instance, they serve different purposes and are used in distinct contexts. An AMI is a reusable image that allows you to launch new EC2 instances with a preconfigured setup. It includes all configuration details such as the operating system, application stack, and storage settings, making it suitable for replicating entire environments across multiple instances. AMIs are designed to be shared or copied for easy deployment of identical configurations. On the other hand, in AWS Basics, a snapshot is a point-in-time backup of a specific EBS volume, typically used for backup and disaster recovery purposes. While snapshots capture the state of a volume, they don’t provide the same level of detail as AMIs in terms of the overall EC2 instance environment. Snapshots are primarily intended for restoring volumes, whereas AMIs are designed to replicate and launch instances with the same setup. This distinction is crucial for efficiently managing backups, scaling, and replicating infrastructure in the cloud. Additionally, snapshots can be used in combination with AMIs to provide both backup and replication solutions.
Best Practices for AMI Usage
To get the most out of your AMI usage, follow these best practices:
- Automate AMI Creation: Automate the creation of AMIs to ensure that your instances are always backed up and available for scaling.
- Test Regularly: Test your AMIs to ensure they contain all the required configurations and work as expected when launching new instances.
- Secure Your AMIs: Always ensure that sensitive data in your AMI is encrypted and that proper access control policies are in place.
- Use Latest Versions: Keep your AMIs up to date with the latest software patches and updates to ensure security and reliability.
Getting Ready for an AWS Job Interview? Check Out Our Blog on AWS Interview Questions & Answer
Conclusion
Amazon Machine Images (AMIs) are a foundational component of AWS, enabling developers and businesses to deploy consistent, scalable, and secure EC2 instances quickly. By understanding AMIs, their components, and how to manage their lifecycle, you can streamline your AWS deployment process and ensure a consistent, efficient, and secure infrastructure. Whether creating custom AMIs for your applications or using public ones to get started quickly, AMIs provide the flexibility and efficiency needed for cloud computing in AWS. In AWS Training , you learn that AMIs consist of the operating system, application server, applications, and configuration settings, which can be reused across multiple instances. Additionally, custom AMIs allow businesses to maintain specific configurations, ensuring that each EC2 instance is deployed with identical settings. The ability to create and manage AMIs also improves disaster recovery and scaling by making it easier to replicate environments across regions or availability zones. Furthermore, using AMIs helps reduce the time spent on configuration, enabling developers to focus more on application development and less on setup.
